Product Description

Technical Parameters

ModelVBLFT06VBLFT08
Max Working Height(m)810
Max Platform Height(m)68
Max Horizontal Reach(m)3.153.15
Load Capacity(kg)200200
Net Weight(kg)28002870
Platform Size(m)  (L*W*H)0.91*0.67*1.10.91*0.67*1.1
Overall Size(Platform Lowered)(m) (L*W*H)2.76*0.99*1.992.76*0.99*1.99
Grade Ability23%23%
Forearm movement range-60°/+60°-60°/+60°
Longitudinal tilt°33
Driving Speed(Platform Lowered)(km/h)4.54.5
Driving Speed(Platform Raised)(km/h)0.70.7


Main specifications and features

• Platform height:6M to 8M

• Working loading capacity: 200kg

• Auxiliary platform lowering system

• Ground emergency descent system

• Proportional lifting and drive control

• Random diagnosis system

• Connect the AC wire to the platform

• Descent and tilt alarm

• Two-wheel brake

• Hydraulic brake release

• Pothole protection device

• Transport fixing holes

• Non-marking solid tires

If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.

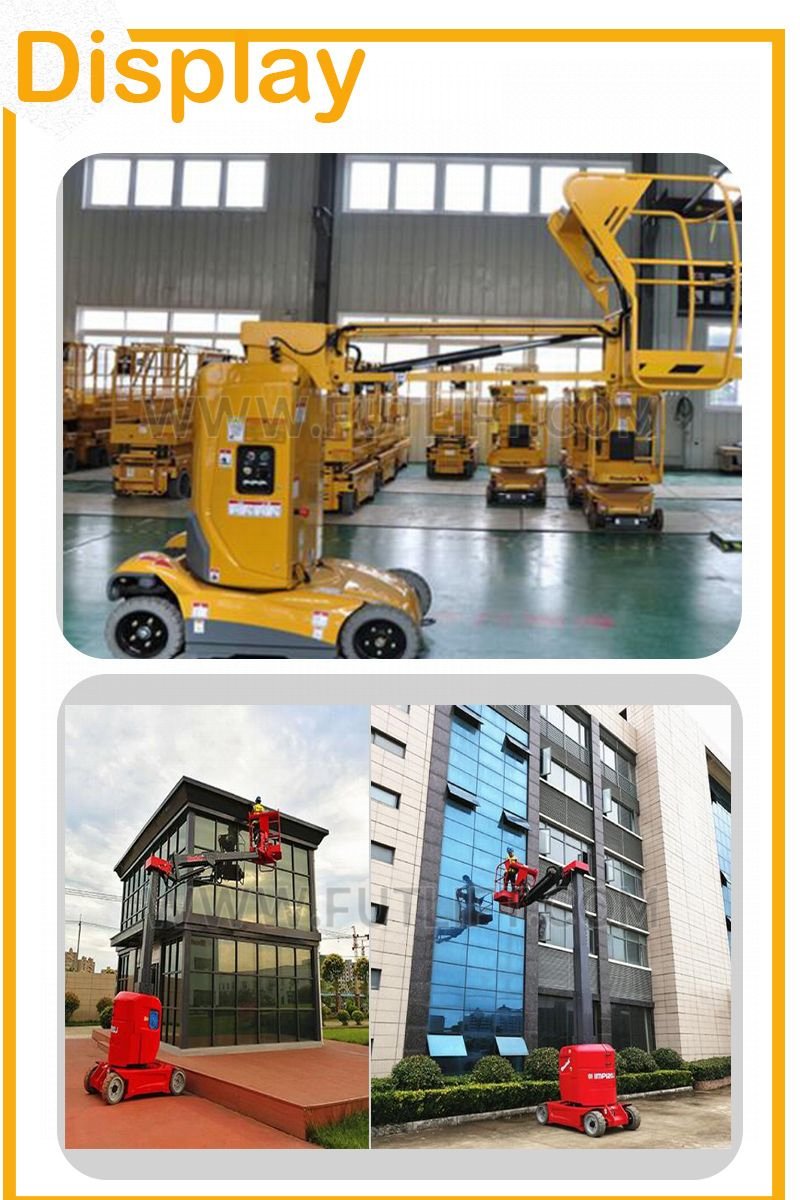

Photos Display
